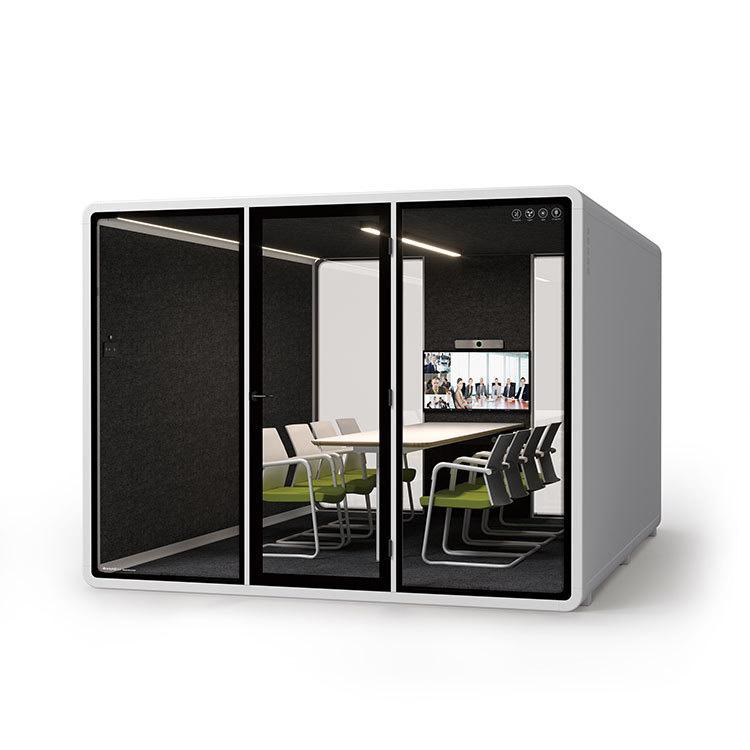

Smart Soundproof Office Meeting Pod

SOPM4 is a smart office meeting pod for up to 4 people.

This multifunctional soundproof meeting space is engineered for face-to face meetings and hybrid work from the office.

Fine-tuned acoustics and soundproofing provides privacy for discussions and virtual calls. SOPM4 adaptive ventilation and

automated lighting let you focus on what really matters and have a successful workday.

workplace for the people who use it – making it easier than ever to get work done. And you can enjoy these benefits without any deployment costs.

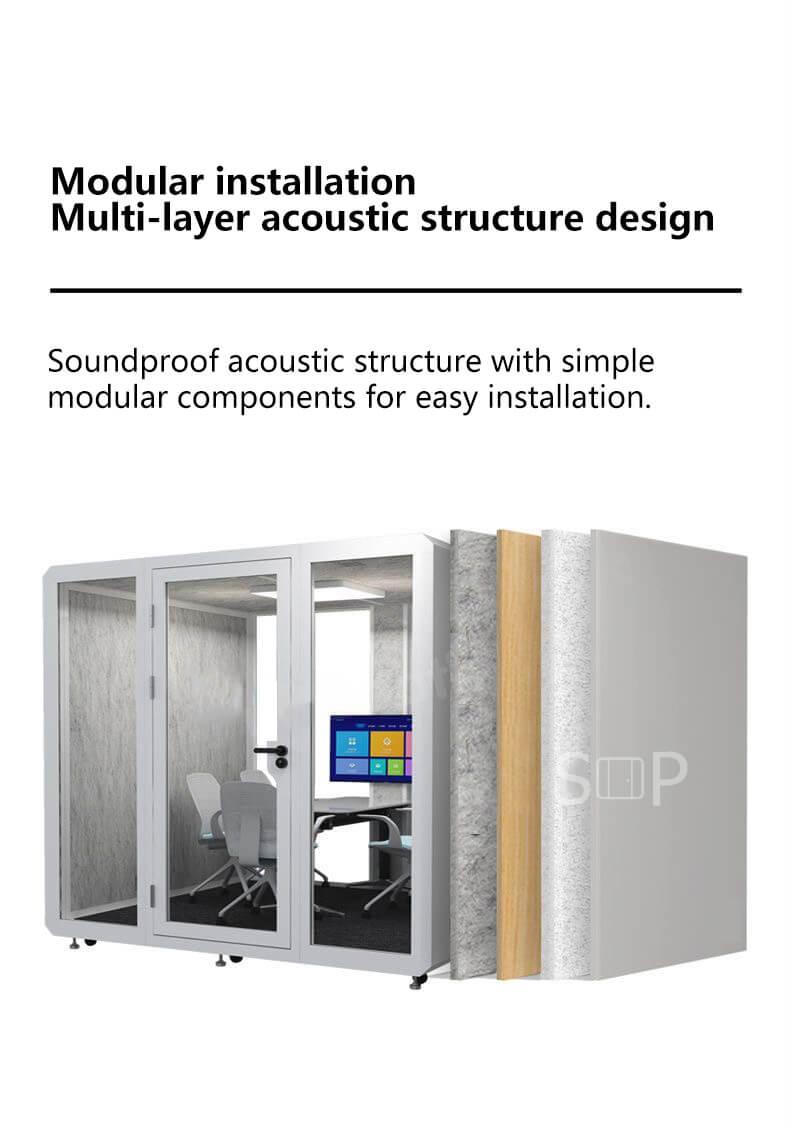

Soundproofing

CLASS A 30 DS,A (dB) reduction Speech level reduction DS,A (dB) is measured using ISO 23351-1. Pod can be placed next to workspaces without compromising privacy.

Sound masking

SOPM4 OFFICE SOUND MASKING SYSTEMTM A pre-fitted sound masking system improves the soundscape of the office outside the pods with an effective radius of 5 m / 16 ft.

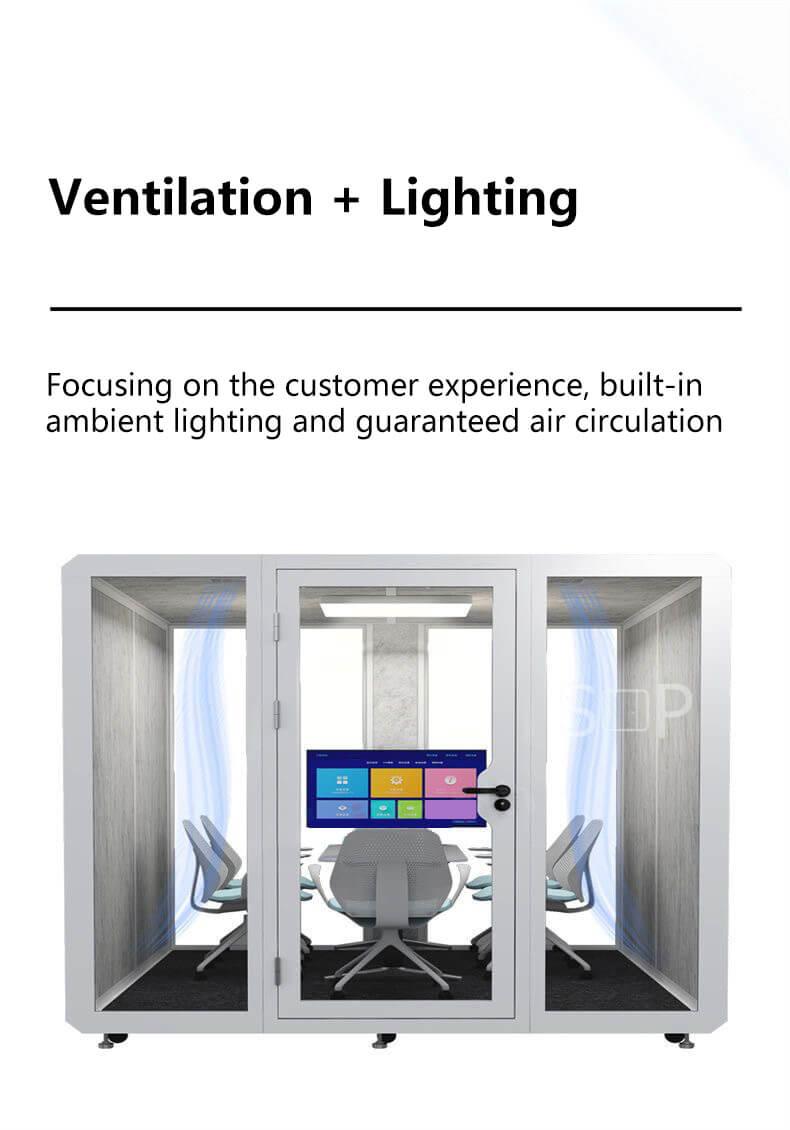

Ventilation

MAXIMUM AIRFLOW 100 l/s, 212 CFM (360.2 m3/h) DEFAULT AIRFLOW 78 l/s, 165 CFM (280 m3/h) when in use. After use, the pod refreshes itself with a higher ventilation speed.

STANDBY MODE 40 l/s, 85 CFM, (144 m3/h) ADJUSTABLE DIRECTIONAL AIRFLOW Choose between direct and indirect airflow

Lighting

CEILING LIGHT Color temperature 4000 K, illuminance up to 500 lux on the table top. VIDEO LIGHT Color temperature 4000 K, illuminance up to 350 lux on the user’s face.
PRE-SET LIGHTING MODES Standard mode & Video call mode. Lighting can also be adjusted also manually.Presence detection SENSOR TECHNOLOGY mmWave radar

Dimensions

EXTERIOR with air filter housing 232.9 × 235.2 × 129.2 cm / 91.7 × 92.6 × 50.9 in (h, w, d) DOORWAY 209.7 × 96.6 cm / 82.6 × 38 in (h, w)WEIGHT 520 kg / 1146.4 lb (SOPM4r Base 460 kg / 208.7 lb)THRESHOLD 1.25 cm / 0.5 in

Touchscreen location

On the table (SOPM4 Four Base: on the wall, right side).

Connectivity

SOPM4 smart pods gather anonymous occupancy data, measuring when and how often spaces are used. Users in the space cannot be identified and no personally
identifiable data is collected. The anonymous data is transferred via built-in 4G connectivity, or through a Wi-Fi connection and compiled and shown in the SOPM4 Connect platform.
